Digital Display LX-AS Shore Hardness Tester 0.79mm

Name: Digital Display LXAS Shore Hardness Tester 079mm
Brand: Johoyd
Price: 1 USD

Brand Name : Johoyd

Model Number : LX-AS

Place of Origin : CN

MOQ : 10 Set

Price : Ask the price privately

Payment Terms : T/T

Delivery Time : 1-3 Work days

Packaging Details : Carton

Hardness value display : digital display dial

Hardness reading : digital display dial, intuitive reading

Contact Now

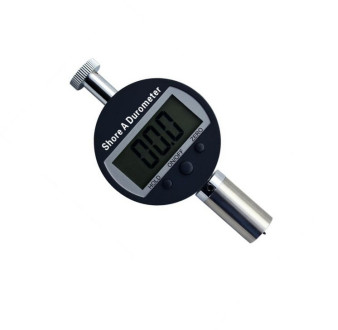

Digital Shore Hardness Tester(LX-AS)

Shore hardness tester (rubber hardness tester) is widely used in hardness measurement of rubber and plastic. With the features of simple structure, convenient use, small body, light weight, and intuitive reading, it can carry hand-held measurement, or it can be set on the same type of fixed load holder for matching production.

Product standard and applications:

1. The products are produced according to the ISO 868 and ISO 7619 international standards and meet the standards of GB/T531, JB6148 and JJG304
2. It is widely used in the hardness test of low and medium hardness plastics, all kinds of rubber, multi-component grease, leather, wax, etc.

Technical parameters:

Measuring range	0-100HD
Measurement error	Within 10-90 degrees,error<±1 degrees
Resolution	0.5 degrees
Needle stroke	2.5mm
Needle end pressure	0.55N-8.05N
Needle head size	Φ 0.79mm
Product size	115×60×25mm
Weight	About 160g

Digital Display LX-AS Shore Hardness Tester 0.79mm

Remarks: You can choose test bracket to make the test more stable and accurate.
